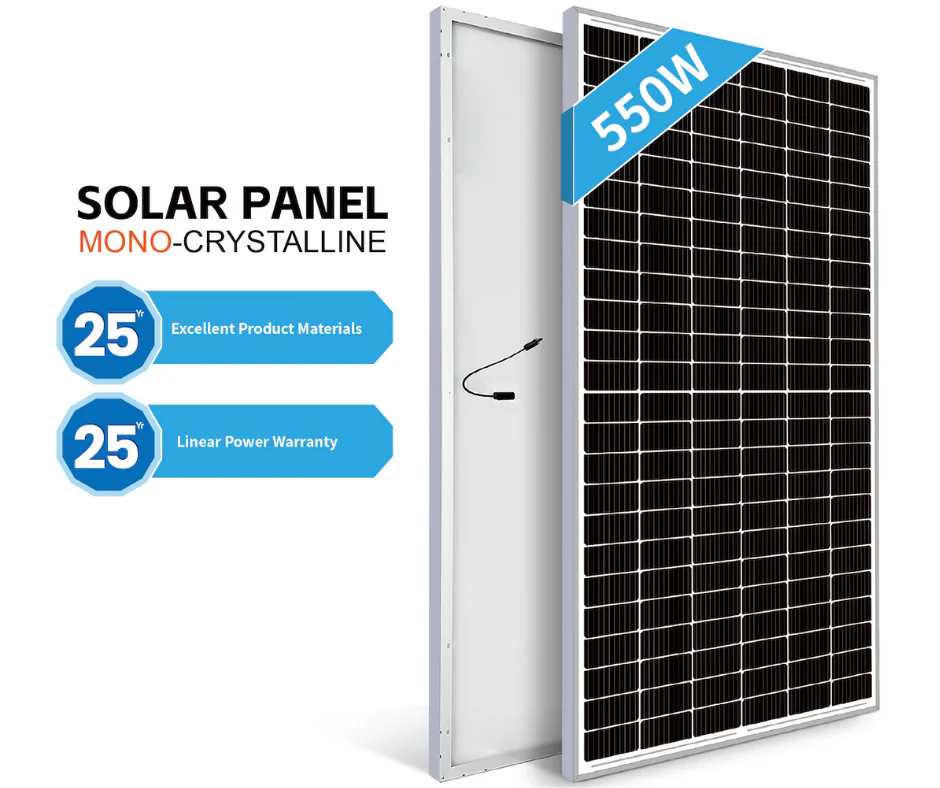

Durable and high-performing, our standard MONOCRYSTALLINE solar panels are designed to provide efficient and reliable energy for homes, businesses, and industrial applications. Built with robust materials, these panels offer maximum energy output, even in challenging weather conditions.
With a lifespan of over 25 years, they are an excellent choice for long-term energy solutions, ensuring cost savings and sustainability. Perfect for rooftop installations or ground-mounted systems.
Electrical Parameters Under STC |
|
|---|---|
| Solar Module Type: BCT-10M-144-550W | |
| Maximum Power at STC (Pmax) [W] | 550 |
| Open-Circuit Voltage (Voc) [V] | 50.10 |
| Optimum Operating Voltage (Vmp) [V] | 42.10 |
| Short-Circuit Current (Isc) [A] | 13.95 |
| Optimum Operating Current (Imp) [A] | 13.07 |
| Component Efficiency [%] | 21.5 |
| Standard test conditions (STC): irradiance 1000W/m², battery temperature 25°C, AM1.5, power tolerance: ±3% | |
Electrical Parameters Under NMOT |
|
|---|---|
| Maximum Power at STC (Pmax) [W] | 416.2 |
| Open-Circuit Voltage (Voc) [V] | 47.40 |
| Optimum Operating Voltage (Vmp) [V] | 39.55 |
| Short-Circuit Current (Isc) [A] | 10.97 |
| Optimum Operating Current (Imp) [A] | 10.52 |
| Component nominal operating temperature (NMOT): irradiance =800W/m², ambient temperature =20°C, wind speed: 1m/s | |
