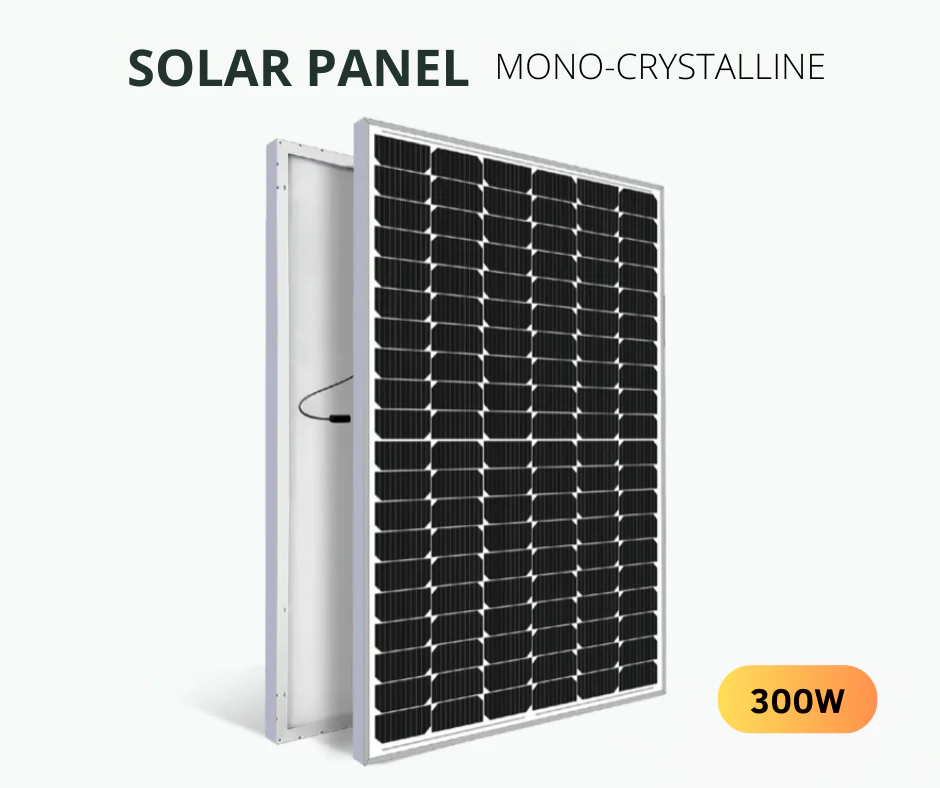

Durable and high-performing, our standard MONOCRYSTALLINE solar panels are designed to provide efficient and reliable energy for homes, businesses, and industrial applications. Built with robust materials, these panels offer maximum energy output, even in challenging weather conditions.
With a lifespan of over 25 years, they are an excellent choice for long-term energy solutions, ensuring cost savings and sustainability. Perfect for rooftop installations or ground-mounted systems.
Electrical Parameters
| Solar Module Type | BCT300M-24 |
| Maximum Power at STC (Pmax) [W] | 300W |
| Optimum Operating Voltage (Vmp) [V] | 43.49V |
| Optimum Operating Current (Imp) [A] | 6.90A |
| Open-Circuit Voltage (Voc) [V] | 49.18V |
| Short-Circuit Current (Isc) [A] | 7.61A |
| Wafer Efficiency[%] | 22.1% |
| Temperature Coefficient (Pmax) | -0.34%/°C |
| Temperature Coefficient (Voc) | -0.27%/°C |
| Temperature Coefficient (Tsc) | +0.045%/°C |
| NOCT | 45±2°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance *Standard test conditions (STC): irradiance 1000W/m2, battery temperature 25°C, AM1.5, power tolerance: ±3% | ±3% |
Specfications
| Solar Module Type | BCT300W-24 |
| Component Size | 1320 × 1134 × 30mm |
| Component Weight | 17.05kg |
