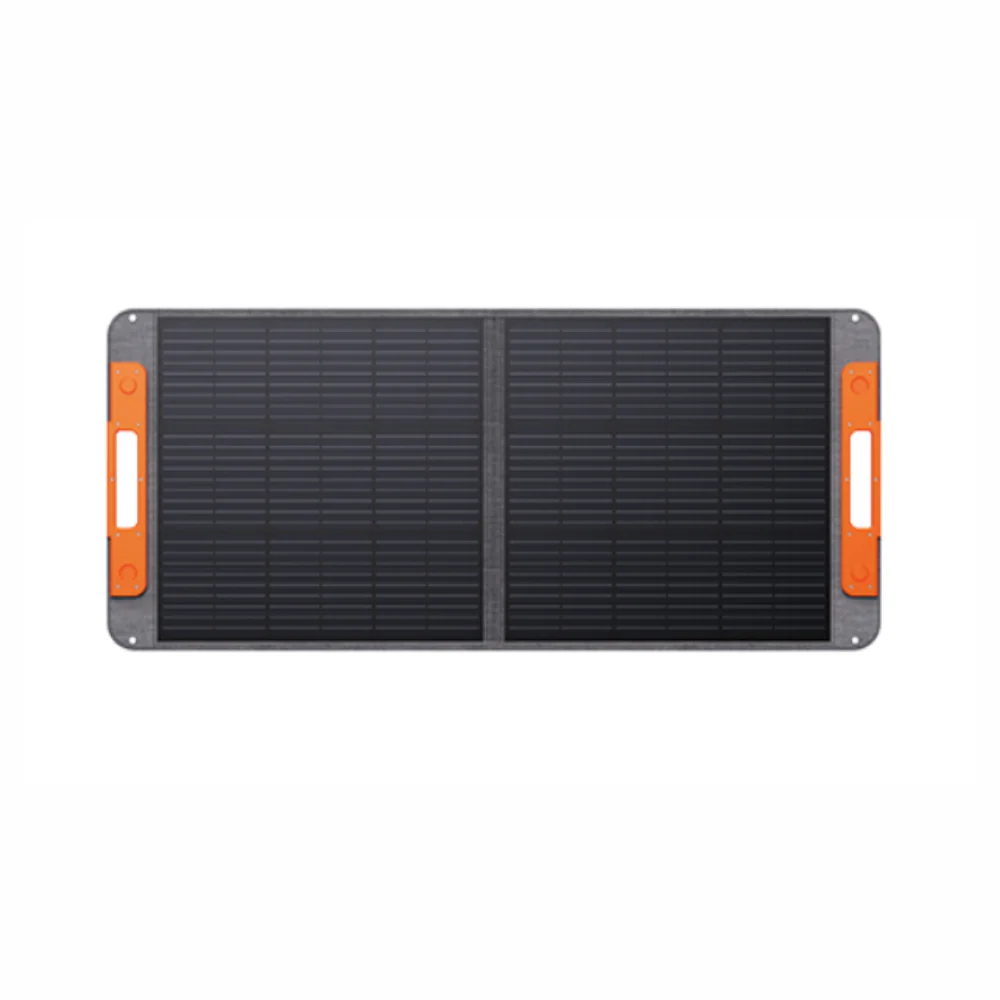

Lightweight, portable, and versatile, our foldable MONOCRYSTALLINE solar panels are the ideal energy solution for outdoor enthusiasts, travelers, and off-grid living. Designed for convenience, these compact panels can easily be folded and carried anywhere.
Despite their portability, they deliver efficient energy output to charge small devices, power lights, or complement mobile setups. Durable and easy to set up, they are perfect for camping, road trips, and emergency backup power needs.
Mechanical Characteristics (STC/NOCT) |
|
|---|---|
| Maximum Power (Pmax) | 100W |
| Maximum Power Voltage (Vmp) | 20.16V |
| Maximum Power Current (Imp) | 4.96A |
| Open-Circuit Voltage (Voc) | 24.3V |
| Short-Circuit Current (Isc) | 5.25A |
| Module Efficiency (%) | 21.3 |
| Power tolerance | 0~+3% |
| Maximum system voltage | 600DC |
| Maximum series fuse rating | 15A |
| *STC(Standard Test Condition): Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5. | |
| *NOCT(Normal Operating Cell Temperature): Irradiance 800W/㎡, Cell Temperature 25℃, Air Mass 1.5. | |
Specifications |
|
|---|---|
| Cell Type | Monocrystalline Silicon, 166*83mm |
| Cell Arrangement | 36pcs(3*6*2) |
| Open size | 1233*536*25mm |
| Fold size | 616.5*536*50mm |
| Weight | 4.8kg±0.1 |
| Junction Box | IP54 |
| Cable | 14AWG*1000mm |
| Connector | MC4 compatible |
TEMPERATURE COEFFICIENTS |
|
|---|---|
| Temperature coefficients of Pmax | -0.29%/°C |
| Temperature coefficients of Voc | -0.25%/°C |
| Temperature coefficients of Isc | 0.045%/°C |
| Operating Temperature(°C) | -10°C ~ +70 °C |
